What YAML gives technical docs that XML and Markdown can’t

Core thesis: For small-to-medium structured reference data that needs to live in Git and render across multiple formats, YAML functions as an ideal single source of truth—decoupling pure data from presentation without the runtime overhead of a database or the verbosity of XML.

YAML is a lightweight, human-readable data format that simplifies configuration files and data exchange. Its clarity, flexibility, and efficiency make it increasingly popular among developers, often outperforming XML, Markdown, and some database solutions in modern documentation pipelines.

The core architectural argument rests on three points:

• The problem: When structured reference data is mixed with presentation markup, keeping catalogs, tables, and specifications updated becomes an error-prone maintenance bottleneck.
• The proposal: Store reference facts in plain YAML files under full Git version control, completely decoupled from layout.
• The payoff: Render that single source into tables, lists, headless APIs, and UI widgets while preserving atomic Git diffs and branch-based reviews.

Storing content in plain files rather than a database keeps your source code accessible to standard text-processing tools, makes peer reviews transparent, and fits directly into CI/CD build steps.

Imaginary scenario: choosing the right engine oil

Imagine you’re an engine oil manufacturer. Every day, customers ask you which oil is best for their engines. Some have one-cylinder engines, others have multi-cylinder setups. Price, viscosity, and compatibility all matter, but helping them make the right choice isn’t just about knowing your products. It’s about how you store and present that information.

To anchor this architectural choice, we will follow a single continuous dataset throughout this article: an engine-oil catalog tracking six core attributes:

Oil Data Model
├── type            # Category / designation: Primary oil, Secondary oil
├── brand (name)    # Product brand identifier: A1X, B2Z
├── usage           # Target engine: One-cylinder engines, Two-cylinder engines
├── price           # Unit price (numeric float): 15.00, 17.00
├── cylinders       # Engine cylinders (integer): 1, 2
└── viscosity_grade # SAE rating: 0W-20, 5W-30

At first, managing this catalog looks simple enough. You create a quick reference table:

Looks neat, right? But as your product line grows, so does the complexity. Adding new oils, updating prices, or including extra metadata like cylinder count or warranty quickly turns into a maintenance problem.

The XML temptation

Some teams turn to DITA reference XML, thinking formal structure will solve the problem:

<reference id="oil-types">
  <title>Oil types</title>
  <shortdesc>You will find below the recommended oil types.</shortdesc>
  <refbody>
    <section>
      <title>Primary oil</title>
      <ul>
        <li>Brand: A1X</li>
        <li>Use: One-cylinder engines</li>
        <li>Price: 15</li>
        <li>Viscosity grade: 0W-20</li>
      </ul>
    </section>
    <section>
      <title>Secondary oil</title>
      <ul>
        <li>Brand: B2Z</li>
        <li>Use: Two-cylinder engines</li>
        <li>Price: 17</li>
        <li>Viscosity grade: 5W-30</li>
      </ul>
    </section>
  </refbody>
</reference>

What XML provides: Explicit document structure, semantic tagging, and formal DTD/XSD validation.

What becomes painful in this specific use case: The moment prices change, new products are added, or you want to track extra attributes, the XML becomes cumbersome:

Hardcoded XML works for tiny static lists, but it quickly becomes brittle as catalog content grows.

Markdown tables: simple but limiting

Markdown tables are immediately readable in raw text:

| Oil Type      | Brand | Use                  | Price | Viscosity Grade |
| ------------- | ----- | -------------------- | ----- | --------------- |
| Primary oil   | A1X   | One-cylinder engines | 15    | 0W-20           |
| Secondary oil | B2Z   | Two-cylinder engines | 17    | 5W-30           |

What Markdown provides: Fast authoring, high human readability in raw text, and universal static-site generator support.

What breaks down when data scales: Behind the tidy appearance, embedded tables carry hidden maintainability problems:

| Oil Type | Brand | Use  | Price | Viscosity Grade |
| - | - | - | - | - |
| Primary oil | A1X | One-cylinder engines | 15 | 0W-20 |
| Secondary oil | B2Z | Two-cylinder engines | 17 | 5W-30 |

Markdown is excellent for prose, but as your structured reference data grows, you need an architecture that decouples content from layout.

Databases: powerful, but a poor fit for source content

Databases are excellent at what they’re built for: structured storage, rich queries, integrity constraints, and concurrent access at scale. The question isn’t whether they’re capable: it’s whether they fit documentation source code.

For content you want to version, review, and build into a static site, a database pulls in the opposite direction. It introduces a live service to run, migrate, back up, and secure. Most importantly, the content lives outside Git: you lose readable diffs, branch-and-PR review, and editing offline in your text editor. The data is no longer plain text you can grep, refactor with sed, or roll back with a commit.

That is the real trade-off: not query performance, but where your content lives and how you change it.

YAML: readable, structured, and scalable

This is where YAML shines. It is human-readable, hierarchical, and structured, making it ideal for reference documentation that needs to scale under version control.

Here is the canonical data source (oil-types.yaml):

id: oil-types
title: Oil types
shortdesc: Recommended oil types
properties:
  headers:
    type: Type
    value: Brand
    usage: Use
  rows:
    - type: Primary oil
      value: A1X
      usage: One-cylinder engines
    - type: Secondary oil
      value: B2Z
      usage: Two-cylinder engines

Rendered in Markdown or HTML via a simple build script, it produces a clean presentation table:

Benefits of YAML as a source of truth

YAML versatility: one source, multiple output formats

The central payoff of structured data is versatility. The same dataset can be rendered in multiple representations—lists, summary cards, data tables, or headless APIs—without changing a single character in the source file.

Below are three live representations generated from the exact same oil-types.yaml dataset:

Output 1: Compact list for quick scanning

For user guides or mobile-friendly overviews where a wide table is unnecessary, the data renders as a clean bulleted hierarchy:

Output 2: Responsive two-column summary

For summary reference pages, a two-column layout pairs each brand with its technical properties. On desktop, this renders as a table; on mobile viewports, it collapses into individual labeled rows inside cards:

Output 3: Dynamic, sortable four-column table

For comprehensive engineering specifications, the same YAML file feeds an interactive table featuring typed sorting (numeric pricing, integer cylinder counts, alphabetical text) and formatted currency labels:

Notice the key architectural takeaway: all three outputs derive from a single file. If the price of Primary oil changes to $16.50, you update that single value in oil-types.yaml. The list, the two-column summary, the four-column table, and the API payload all update in lockstep during the next build.

Easier diffs and cleaner version control

One of the most practical benefits of this architecture is version control hygiene. When data and presentation are mixed, even trivial changes produce noisy Git diffs that make code reviews slow and error-prone.

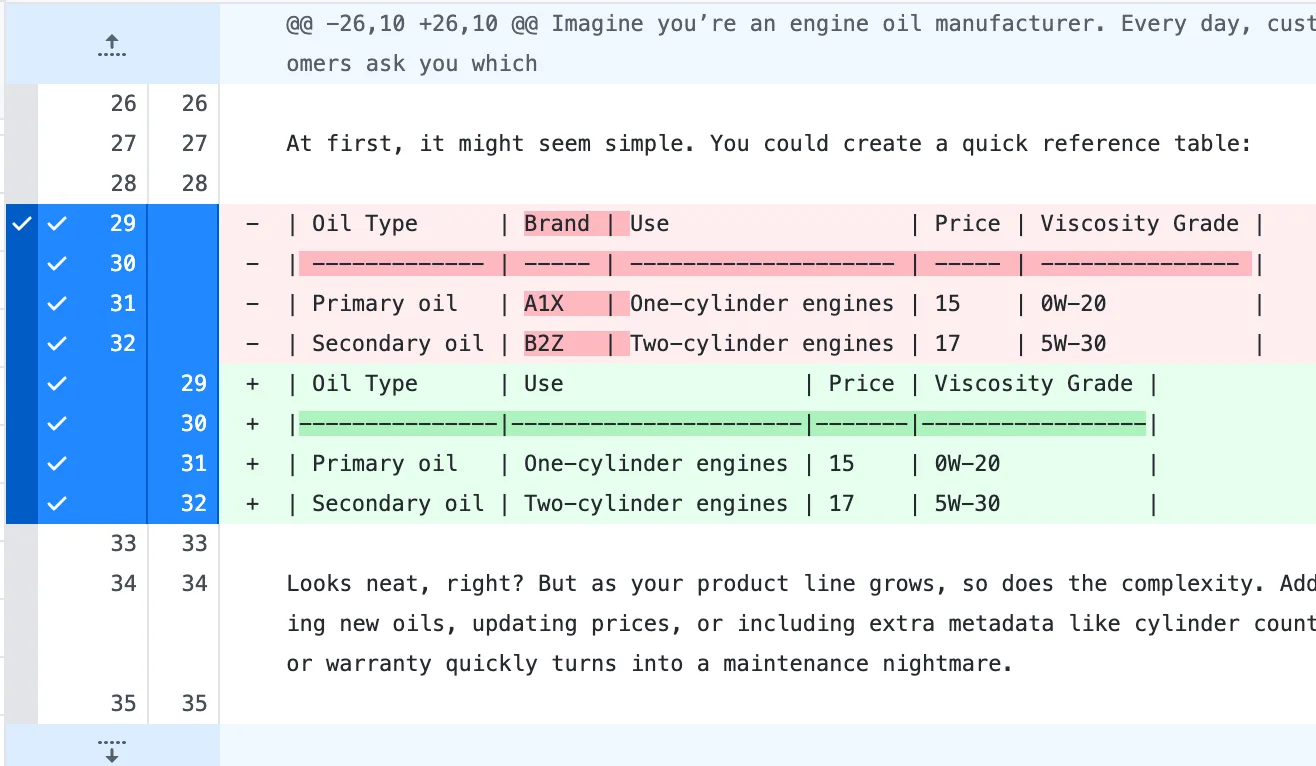

Evidence 1: Reordering columns in an embedded Markdown table

When you remove or reorder a column in a Markdown table, Git compares the file line by line. Every single row appears modified because the column delimiters moved:

diff --git a/src/content/blog/scalable-maintainable-technical-docs-with-yaml.mdx b/src/content/blog/scalable-maintainable-technical-docs-with-yaml.mdx
index 61dadd8..0f70057 100644
--- a/src/content/blog/scalable-maintainable-technical-docs-with-yaml.mdx
+++ b/src/content/blog/scalable-maintainable-technical-docs-with-yaml.mdx
@@ -26,10 +26,10 @@ Imagine you’re an engine oil manufacturer. Every day, customers ask you which

   At first, it might seem simple. You could create a quick reference table:

-| Oil Type      | Brand | Use                  | Price | Viscosity Grade |
-| ------------- | ----- | -------------------- | ----- | --------------- |
-| Primary oil   | A1X   | One-cylinder engines | 15    | 0W-20           |
-| Secondary oil | B2Z   | Two-cylinder engines | 17    | 5W-30           |
+| Oil Type      | Use                  | Price | Viscosity Grade |
+|---------------|----------------------|-------|-----------------|
+| Primary oil   | One-cylinder engines | 15    | 0W-20           |
+| Secondary oil | Two-cylinder engines | 17    | 5W-30           |

Notice: Even though the actual product data was untouched, four lines were flagged as deleted and replaced. Reviewers cannot quickly tell if a price or viscosity was altered.

Tip: Mitigate table diff issues with third-party tools

To partially improve the readability of table diffs, use tools like GitHub Desktop or git diff --word-diff, or configure a custom diff driver in .gitattributes.

These tools help human reviewers spot changes, but Git internally still treats the entire line as modified.

Evidence 2: Removing keys from the YAML source

By contrast, when tables are generated from YAML, removing an unused field is an atomic, legible change:

diff --git a/src/data/oil-types.yaml b/src/data/oil-types.yaml
index 11eef57..87c04df 100644
--- a/src/data/oil-types.yaml
+++ b/src/data/oil-types.yaml
@@ -5,24 +5,20 @@ shortdesc: You will find below the recommended oil types.
 properties:
   headers:
     type: Type
-    name: Brand
     usage: Use
   row_schema:
     type: str
-    name: str
     price: float
     cylinders: int
     viscosity_grade: str
   rows:
     - type: Primary oil
-      name: A1X
       price: 15.0
       cylinders: 1
       viscosity_grade: 0W-20
     - type: Secondary oil
-      name: B2Z
       price: 17.0
       cylinders: 2
       viscosity_grade: 5W-30

Notice: Only the exact lines containing name: Brand and the corresponding product values are removed. Every other property line remains untouched, making peer reviews instantaneous.

Evidence 3: Updating table presentation in the component script

An even cleaner docs-as-code pattern is adjusting the rendering component rather than the data. If you want to hide a column across all documentation pages, you update the Astro component:

diff --git a/src/components/table.astro b/src/components/table.astro
index c05af99..d594203 100644
--- a/src/components/table.astro
+++ b/src/components/table.astro
@@ -3,7 +3,6 @@ import data from "../data/oil-types.yaml";
 type OilRow = {
   type: string;
-  name: string;
   usage: string;
   viscosity_grade: string;
   price: number;
@@ -34,7 +33,6 @@ const wordsToNumber: Record<string, number> = Object.fromEntries(
     <thead>
       <tr>
         <th data-key="type" data-type="text">Type <span class="arrow">▲▼</span></th>
-        <th data-key="name" data-type="text">Brand <span class="arrow">▲▼</span></th>
         <th data-key="cylinders" data-type="cylinders">Cylinders <span class="arrow">▲▼</span></th>
         <th data-key="viscosity_grade" data-type="text">Viscosity grade <span class="arrow">▲▼</span></th>
         <th data-key="price" data-type="number">Price <span class="arrow">▲▼</span></th>
@@ -44,7 +42,6 @@ const wordsToNumber: Record<string, number> = Object.fromEntries(
       {rows.map((row) => (
         <tr>
           <td data-label="Type">{row.type}</td>
-          <td data-label="Brand">{row.name}</td>
           <td data-label="Cylinders">{numberToWords(row.cylinders)}-cylinder engines</td>
           <td data-label="Viscosity grade">{row.viscosity_grade}</td>
           <td data-label="Price">${row.price.toFixed(2)}</td>

Notice: A single 4-line change in the rendering component updates every table across your entire documentation site without touching a single record in oil-types.yaml.

Growing with your YAML: The maturity model

What begins as a simple reference file can mature into a complete documentation asset pipeline:

Our oil-types.yaml file scales through four stages:

1. Structured source: The YAML file stores pure data facts once.
2. Multi-channel distribution: The file generates DITA reference topics, OpenAPI JSON endpoints, and dynamic web UI components.
3. Strong typing: Enforcing numeric types for prices (float) and cylinder counts (int) prevents formatting errors.
4. Schema validation: A central JSON Schema or Zod validator in your CI pipeline guarantees that missing fields or malformed records fail the build before reaching production.

Why a structured source is better than embedded tables

Tables are an effective way to present structured data in a familiar, scannable layout. However, authoring user-facing tables directly in Markdown source files ties data to presentation.

A stronger alternative is to extract data at build time from a structured source, such as a YAML single source of truth. This approach allows you to render the same information in multiple ways, each tailored to the target medium and the specific needs of your audience: whether that’s a Markdown table in documentation, a JSON payload for an API, or a dynamic HTML component in a UI. See how Astro exposes YAML data through a live API for a working example of this distribution pattern.

By decoupling data from presentation, you gain maintainability, consistency, and flexibility as your content grows.

Where YAML wins, and where it doesn’t

The title of this post is deliberately bold, so it is essential to scope the architectural claim honestly. YAML outperforms the alternatives for one specific job: small-to-medium structured reference data that builds into a static site or feeds an API under Git.

Stretch it past that job and the comparison flips, because the alternatives are not strawmen; each is strong where YAML is weak:

YAML also has real trade-offs and sharp edges that a fair architectural evaluation must acknowledge:

• Indentation sensitivity: A missing space can silently restructure an entire object hierarchy.
• Boolean parsing traps: In older YAML 1.1 parsers, strings like yes, no, on, and off can be coerced into booleans unless strictly quoted.
• No built-in schema: Unlike XML (which has native XSD/DTD validation), YAML requires an external schema validator (such as JSON Schema or Zod) to guarantee data integrity.
• Scale limits: Parsing a 50,000-row YAML file during build time is inefficient; flat files lack relational indexes and JOIN capabilities.

The architectural verdict: For small-to-medium structured reference data you want under Git and rendered many ways, YAML is the best-fit source of truth. It is not a universal replacement for prose or databases—it is a purpose-built lane for sustainable, docs-as-code reference information.
